How to Change QLM Language in QualiWare with AutoLogin Enabled

Step-by-Step Guide to Changing QLM Language in QualiWare with AutoLogin Enabled: Learn How to Temporarily Disable AutoLogin to Modify Language Setting

Steps to Follow

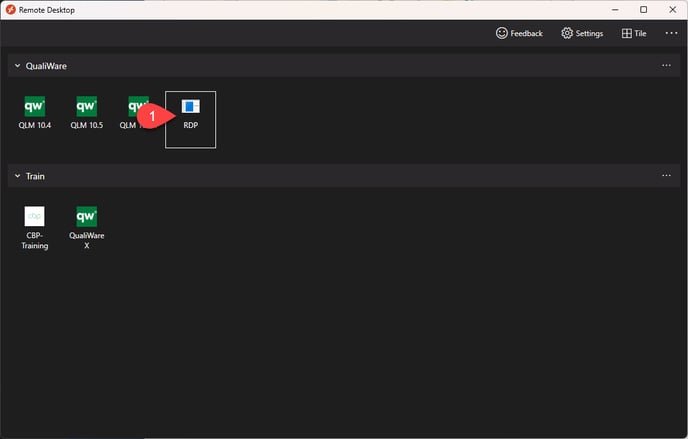

1. Go to "Remote Desktop" Client, Select "RDP" remote application:

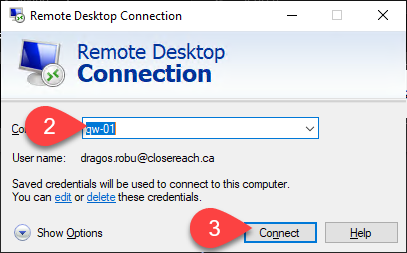

2. Login to "QW-01" and then click "Connect":

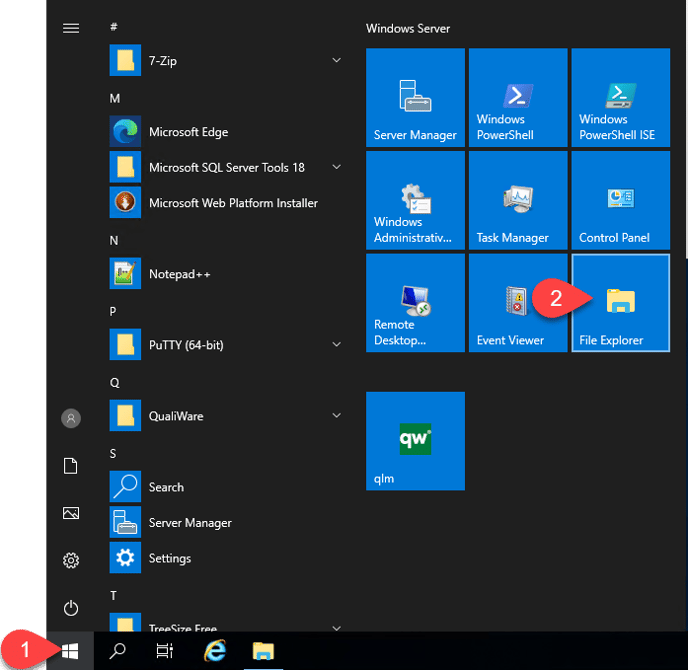

3. Inside the "RDP" remote application, open "File Explorer" via the "Start Menu":

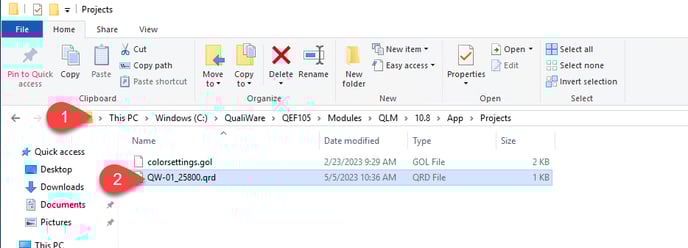

4. Within "File Explorer" Navigate to the following path: "C:\QualiWare\QEF105\Modules\QLM\10.8\App\Projects" and locate file: "QW-01_25800.qrd":

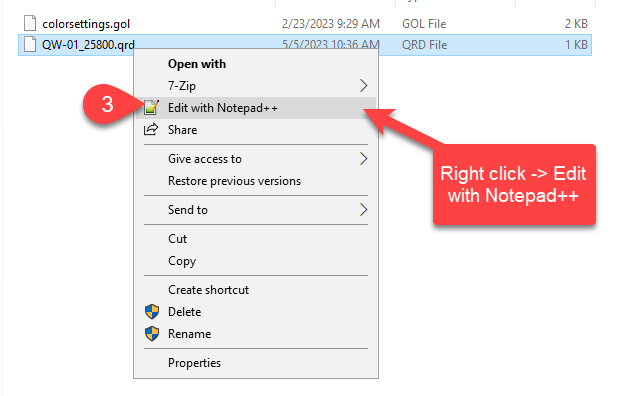

5. Edit the file by "Right-click" on file -> Click "Edit with Notepad++":

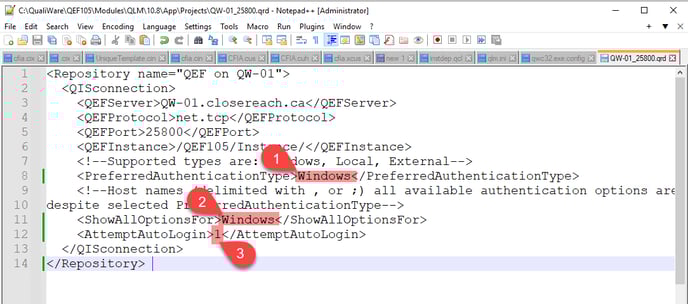

6. Note the highlighted values in the following text contained within that file:



   <Repository name="QEF on QW-01">

    <QISconnection>

      <QEFServer>QW-01.closereach.ca</QEFServer>

      <QEFProtocol>net.tcp</QEFProtocol>

      <QEFPort>25800</QEFPort>

      <QEFInstance>/QEF105/Instance/</QEFInstance>

      <!--Supported types are: Windows, Local, External-->

      <PreferredAuthenticationType>Windows</PreferredAuthenticationType>

      <!--Host names (delimited with , or ;) all available authentication options are shown for

   despite selected PreferredAuthenticationType-->

      <ShowAllOptionsFor>Windows</ShowAllOptionsFor>

      <AttemptAutoLogin>1</AttemptAutoLogin>

    </QISconnection>

   </Repository>

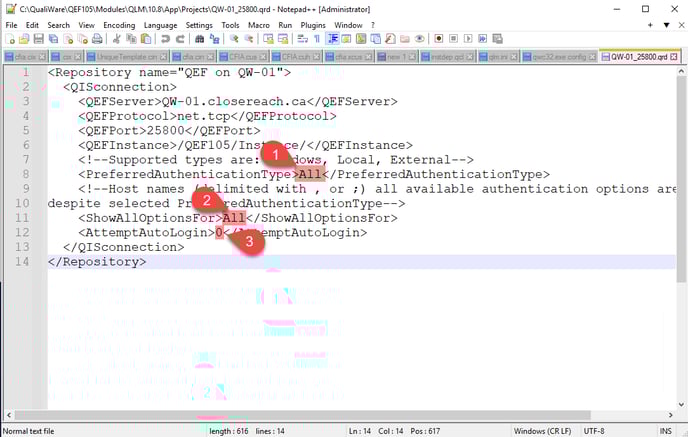

7. Update the highlighted values to the following:



   <Repository name="QEF on QW-01">

    <QISconnection>

      <QEFServer>QW-01.closereach.ca</QEFServer>

      <QEFProtocol>net.tcp</QEFProtocol>

      <QEFPort>25800</QEFPort>

      <QEFInstance>/QEF105/Instance/</QEFInstance>

      <!--Supported types are: Windows, Local, External-->

   <PreferredAuthenticationType>All</PreferredAuthenticationType>

      <!--Host names (delimited with , or ;) all available authentication options are shown for

   despite selected PreferredAuthenticationType-->

      <ShowAllOptionsFor>All</ShowAllOptionsFor>

      <AttemptAutoLogin>0</AttemptAutoLogin>

    </QISconnection>

   </Repository>

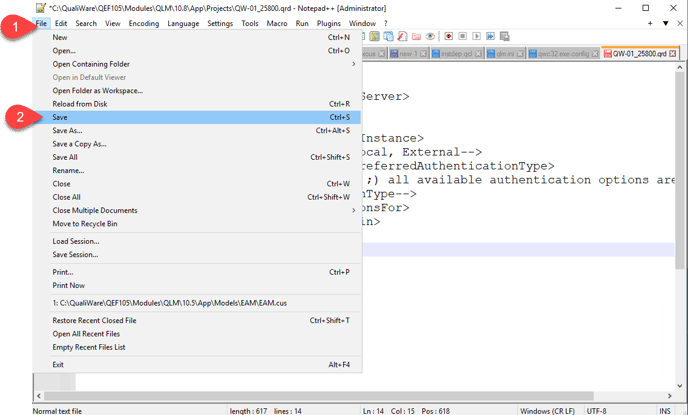

8. Save the file using "File" -> "Save":

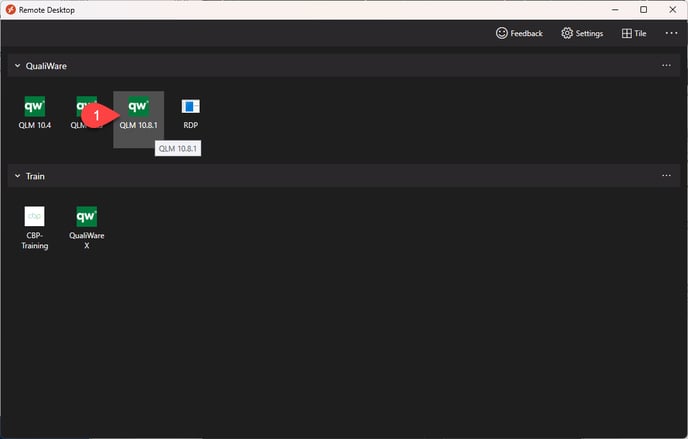

9. Go to "Remote Desktop" Client to launch QLM:

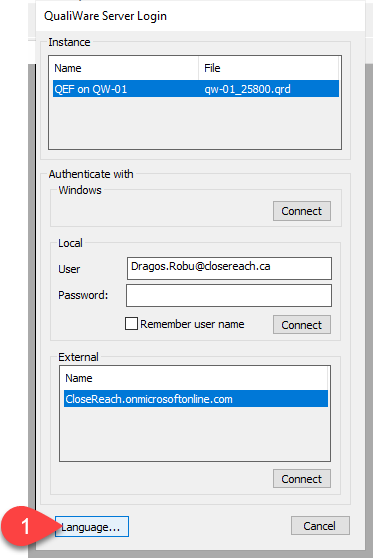

10. In the QualiWare Server Login dialog, select "Language" button:

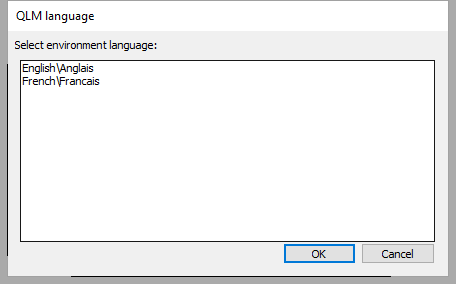

11. Select the Language for QLM to launch by default, and then click, "OK":






12. Go back to "Notepad++" and enable the AutoLogin by undoing the changes to the "QW-01_25800.qrd" file:

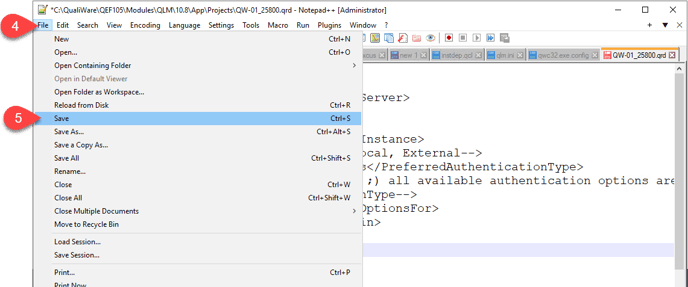

13. Save the file using "File" -> "Save":
